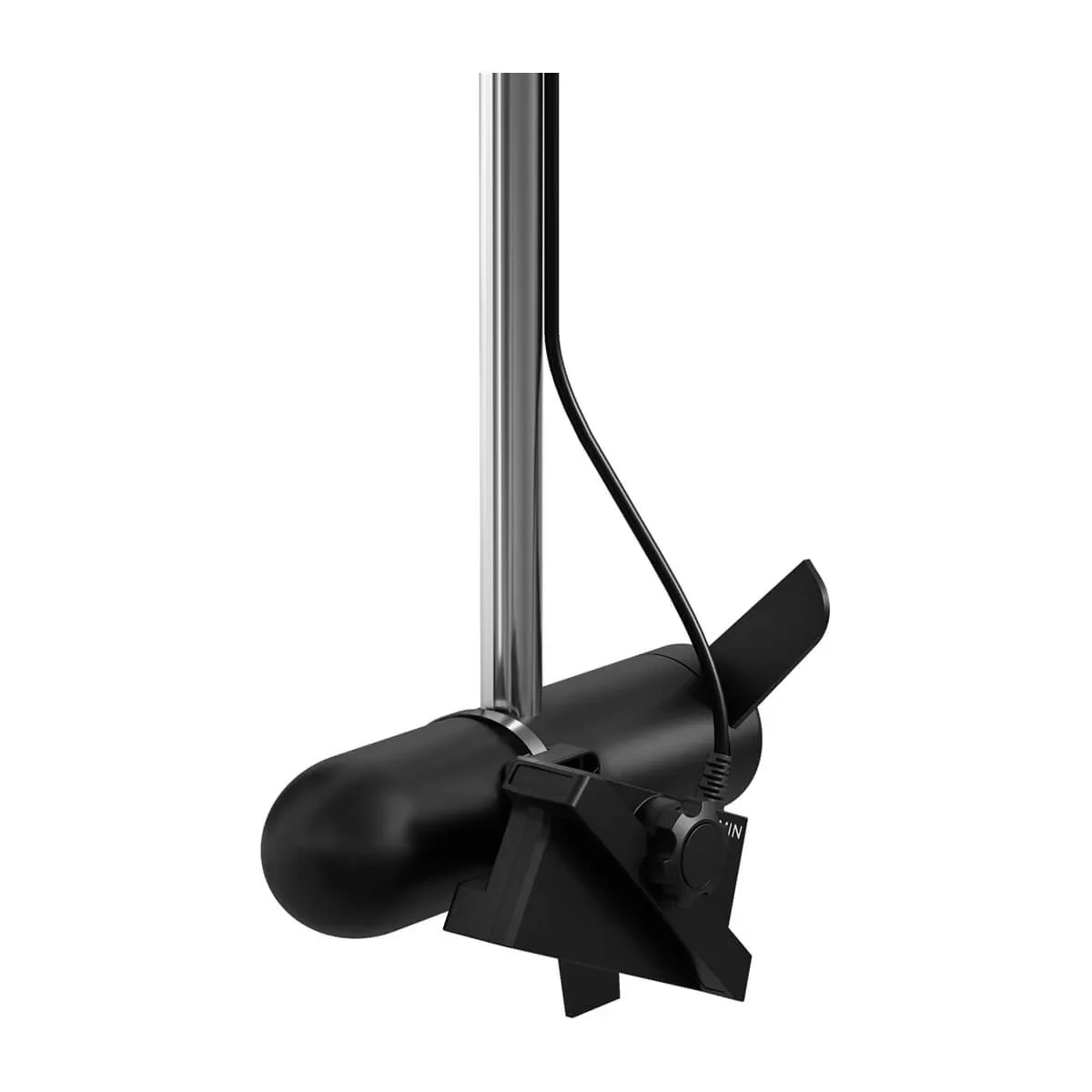

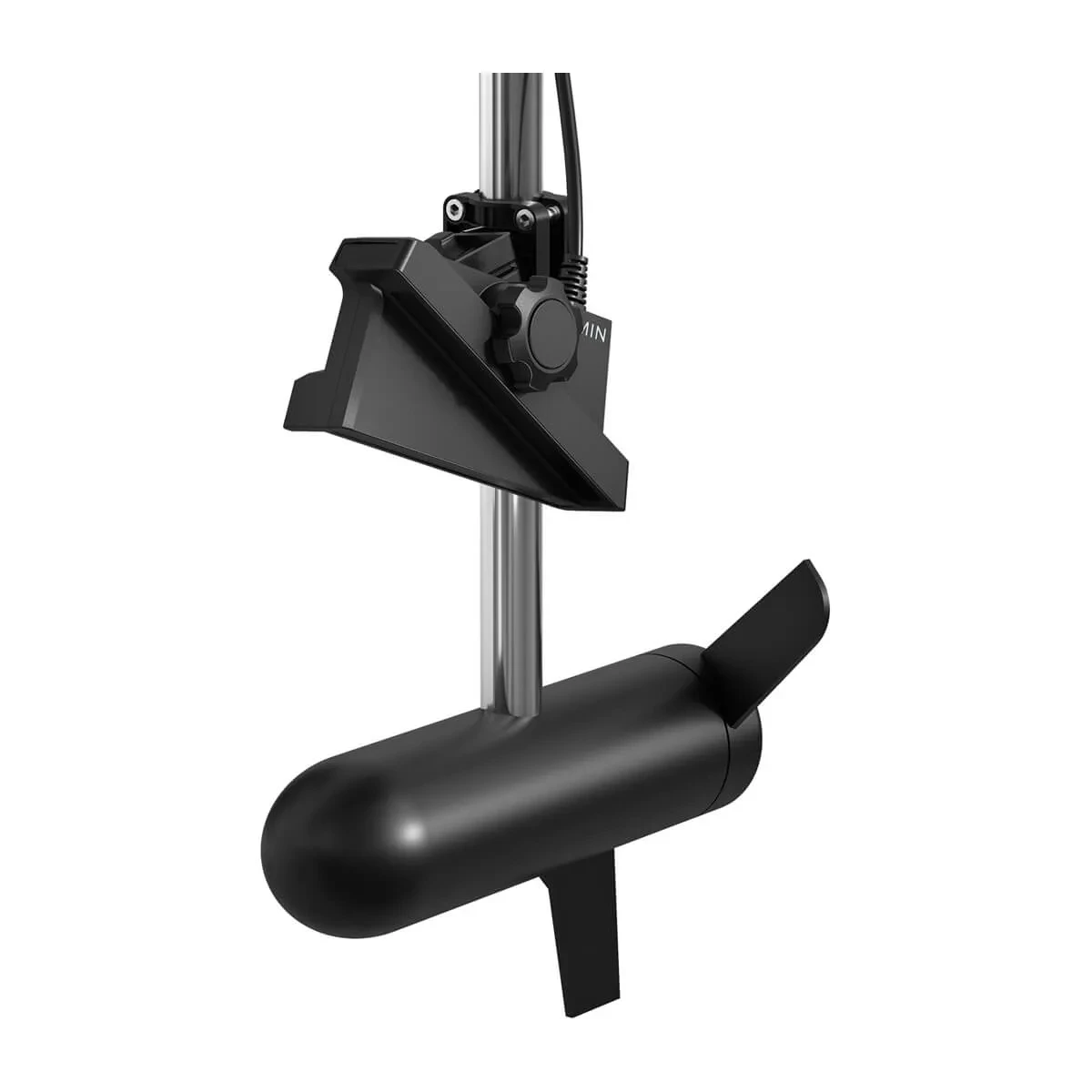

Garmin LiveScope™ XR System with GLS 10™ and LVS62 transducer

You didn’t think it could get any better, but it has with the extended range of the LiveScope XR System. It’s the latest in LiveScope technology, now suited for coastal and open-water fishing.

• Reverse Range Offset: Maximizes screen space to display fish and structures up to 152 meters (500 feet) in freshwater and 107 meters (350 feet) in saltwater.
• Compress Range: Provides a clear view near your boat while still monitoring distant targets.
• Real-Time Sonar: Ensures your live images are as accurate as possible.
• Built-In Stabilization System: Keeps the sonar image on your compatible plotter steady, even in challenging conditions.
• Seven Vivid Color Options: Choose from Aqua, Caribbean, Lava, and more to view fish and structures with maximum contrast and clarity.

General Specifications

• Beam Width: 20° x 135°
• Cable Length: 6 m
• Number of Pins: 21
• Physical Dimensions: GLS 10 Black Box Sonar: 24.5 x 14.9 x 6.5 cm (9.7″ x 5.9″ x 2.6″); LVS62 Transducer: 20.8 x 10.1 x 7.0 cm (8.20″ x 3.98″ x 2.76″)
• Weight: GLS 10 Black Box Sonar: 2.0 kg (4.3 lbs); LVS62 Transducer with cable: 1.78 kg (3.92 lbs); LVS62 Transducer without cable: 1.21 kg (2.66 lbs)
• Water Rating: IPX7
• Operating Temperature Range: LVS62 Transducer: 0°C to 40°C

Electrical Specifications

• Power Supply: 10-32 V
• Power Consumption: 21 W typical, 58 W max
• Fuse: 7.5 A
• Compass Safe Distance: 0.18 m (7″)

Recommended Sonar Specifications

• Supported Frequencies: 282–522 kHz
• Transmit Power: 500 W
• Maximum Depth: Freshwater - Down and Forward 152.0 m (500 feet), Saltwater - Down and Forward 106.0 m (350 feet)
• Sonar Type: Live
• Target Separation at 30 meters (100 feet): 22″

Included

• Perspective Mode Mount

Connections

• Garmin Marine Network™ Ports: 1 (small connector)
